Hospital Lift
The Hospital Lift is specially designed for patient and stretcher transportation with smooth, silent operation. Its spacious cabin and advanced safety features support efficient hospital mobility.
Scroll down
Product Specification
| Load : | 1600 Kg |
| Speed : | 1.0 / 1.5 / 1.75 / 2.5 m/s |
| Cabin Size (W*D) : | 1400×2400 mm |
| Door Opening Size (W*H) : | 1300×2100 mm (Side opening 4 panels) |
| Shaft Size (W*D) : | 2400×2950 mm |

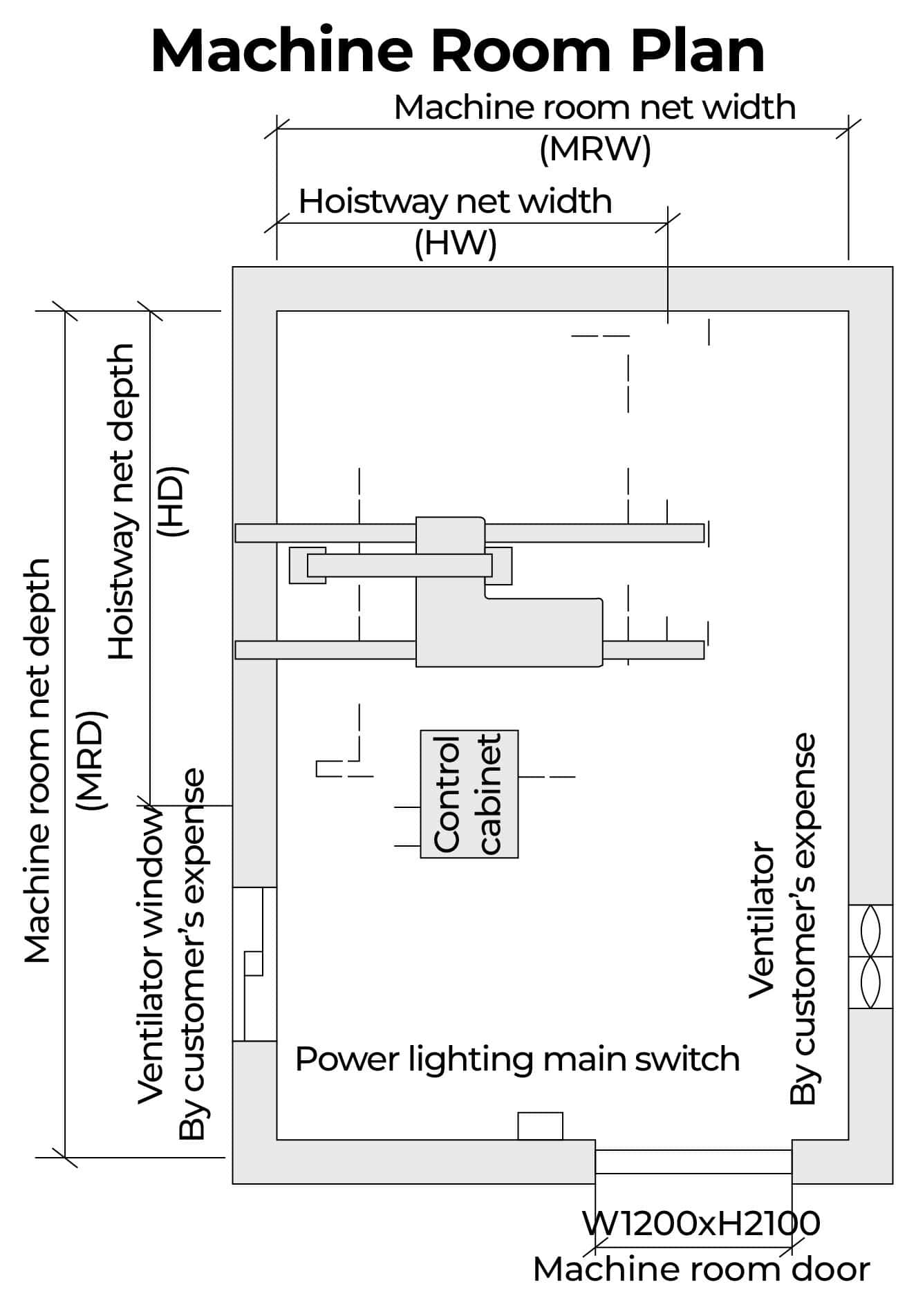

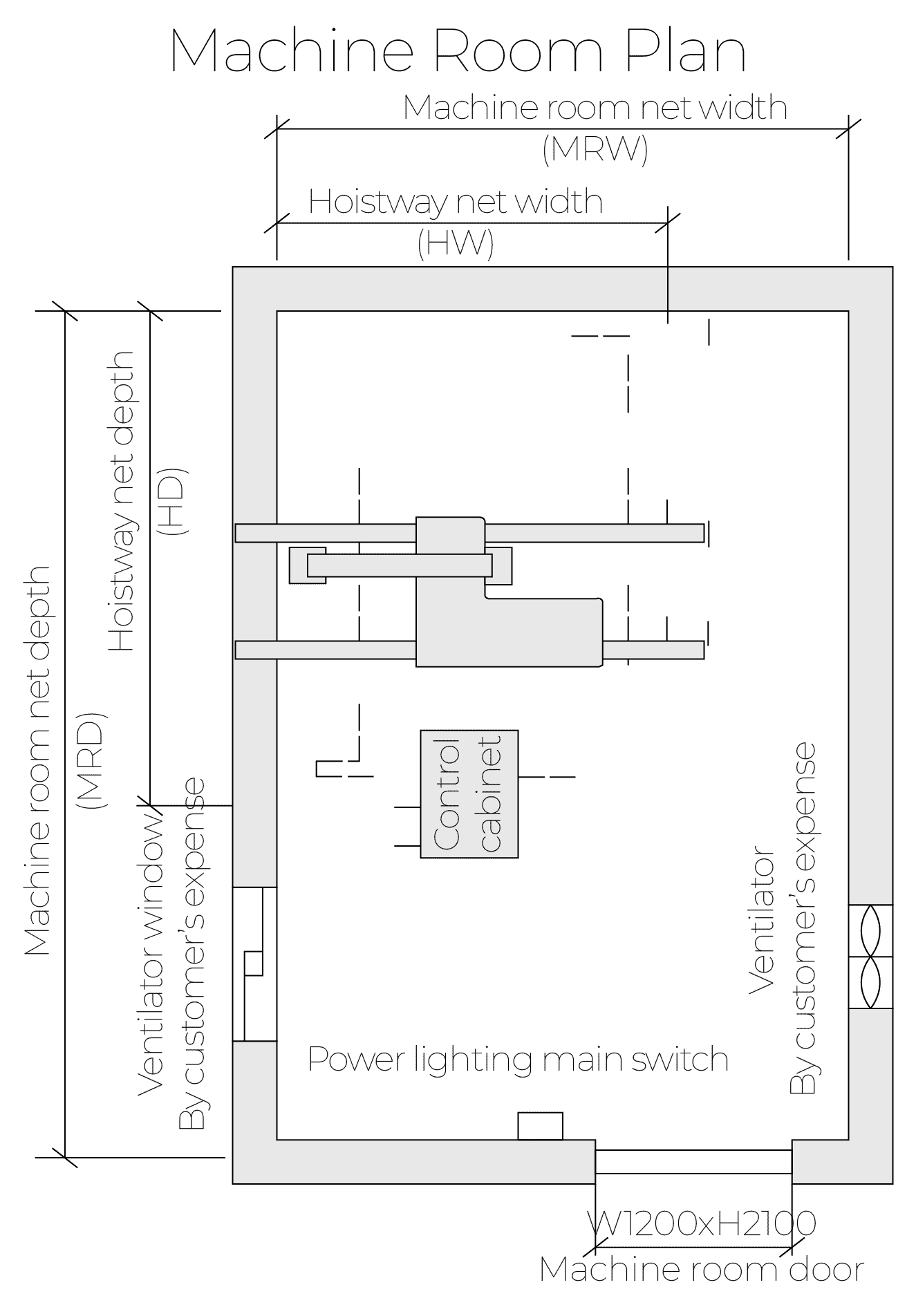

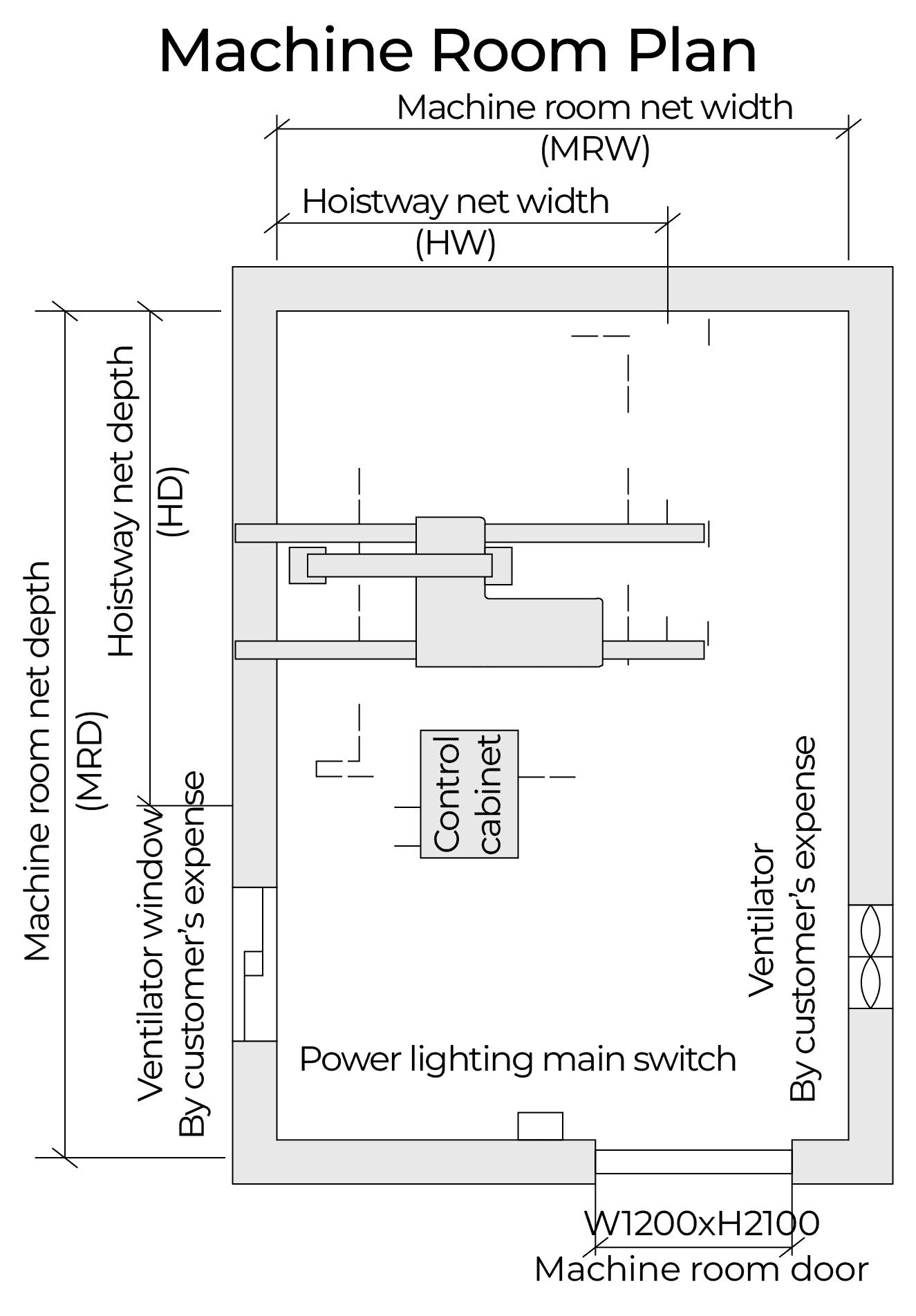

| Machine Room Size (W*D) : | 3200×5000 mm |

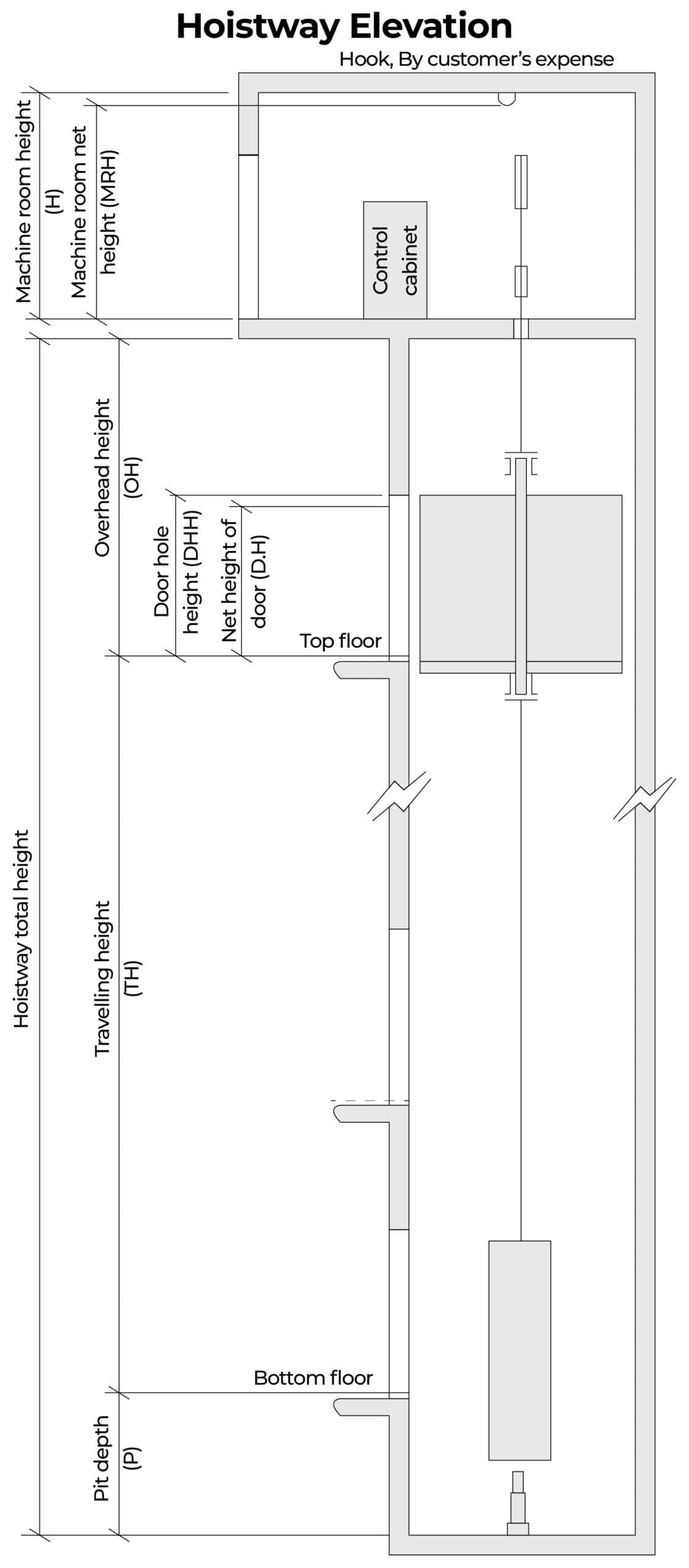

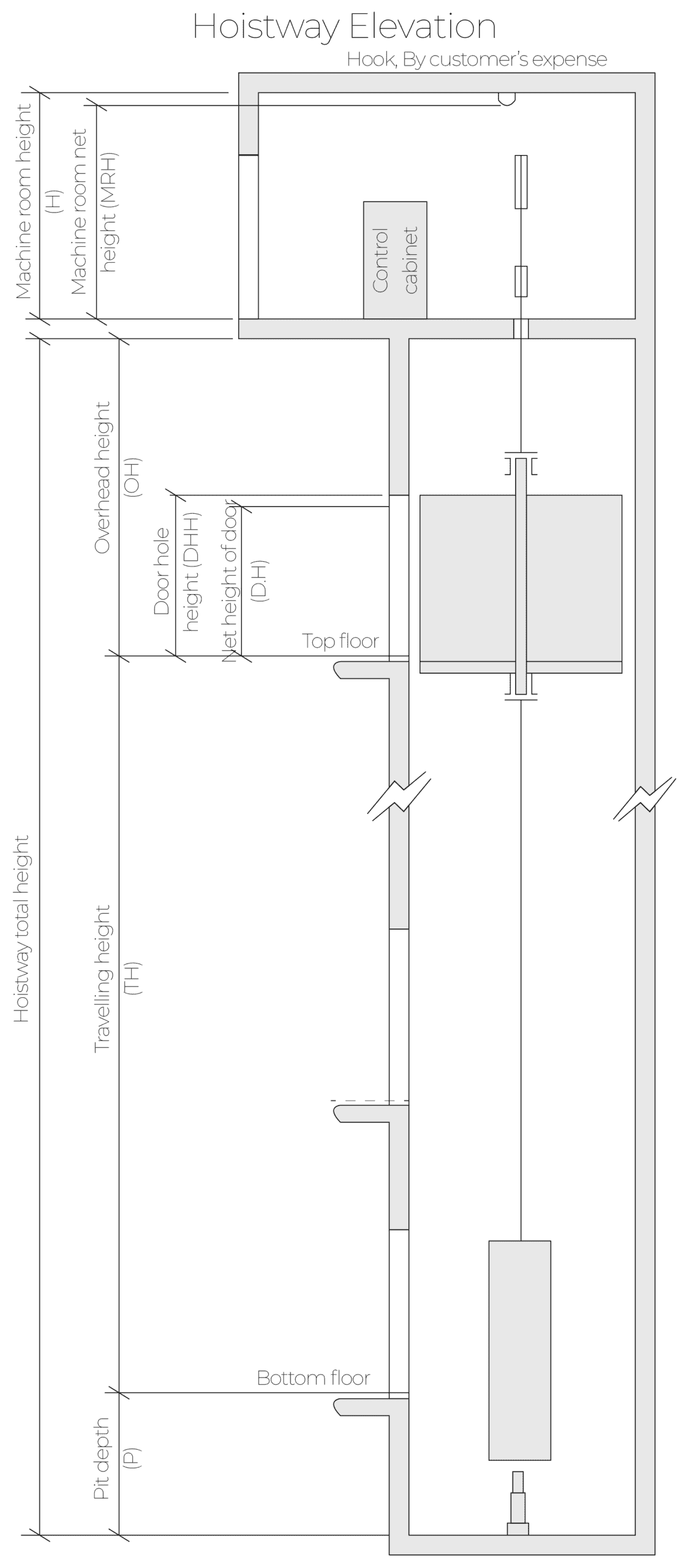

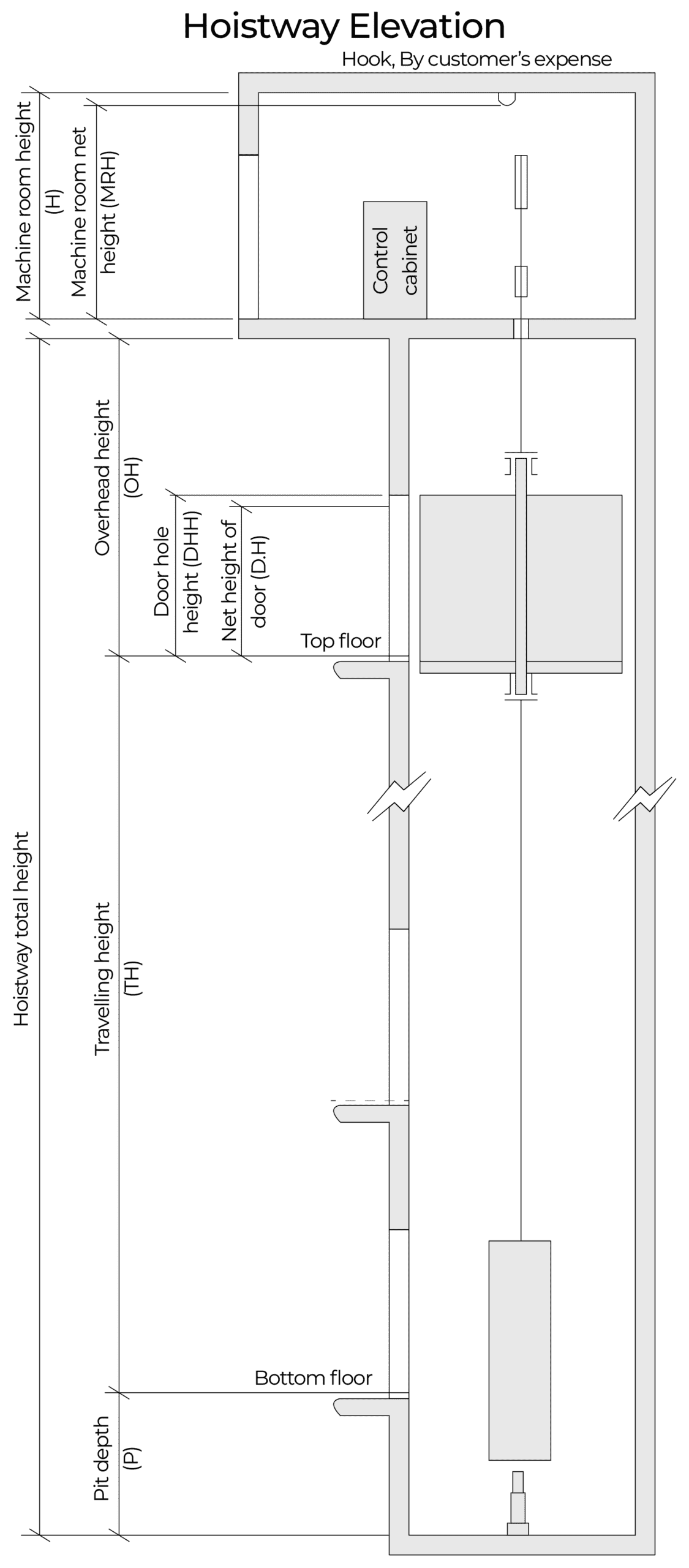

| Overload Height (OH) : | 4500 / 4600 / 4700 / 5000 mm |
| Pit Depth (P) : | 1500 / 1600 / 1700 / 2500 mm |
*Actual specifications may vary depending on project requirements and building conditions.
Safe & Comfortable for Medical Use
Built with a strong and stable structure, specially designed to safely and smoothly transport patients, stretchers, and medical equipment.
Spacious & Functional Design
A wide, hygienic cabin that allows medical staff to easily move stretchers or equipment with maximum comfort and safety.
Precision & Wide Access
Stops perfectly level to the millimeter, featuring wide automatic doors for fast and secure patient mobility during emergencies.
Durable & Backed by Professional Service
Powered by a high-performance motor, supported by 24-hour technicians and after-sales service to ensure optimal operation.
Download Product Brochure
Access the complete technical overview of Hospital Lift systems, including specifications, safety features, medical-grade configurations, and specialized design options to support efficient and secure patient transportation in healthcare facilities.
