Freight Lift
Fujizy Freight Lift systems are built for heavy-duty vertical transportation in industrial and commercial environments. Designed to handle large loads safely and efficiently, these elevators provide durable performance for warehouses, factories, logistics facilities, and service operations.
The system emphasizes operational stability, high load capacity, and reliable long-term performance under demanding working conditions.
Scroll down
Product Specification
| Load : | 1000 / 1600 / 2000 / 2500 / 3000 / 3500 / 4000 / 5000 Kg |
| Speed : | 0,5 / 0,25 m/s |
| Cabin Size (W*D) : | 1400×1600 / 1400×2600 / 1800×2300 / 2000×2400 / 2200×2600 / 1900×3400 / 2100×3400 / 2500×3600 |
| Door Opening Size (W*H) : | 1100×2200 / 1300×2200 / 1500×2200 / 1500×2200 Side Opening / 1800×2200 / 1700×2200 / 1900×2200 / 2200×2200 Central Opening |
| Shaft Size (W*D) : | 2200×2100 / 2400×2900 / 2750×2800 / 3000×2900 / 3200×3100 / 3300×3900 / 3600×3900 / 4000×4100 mm |

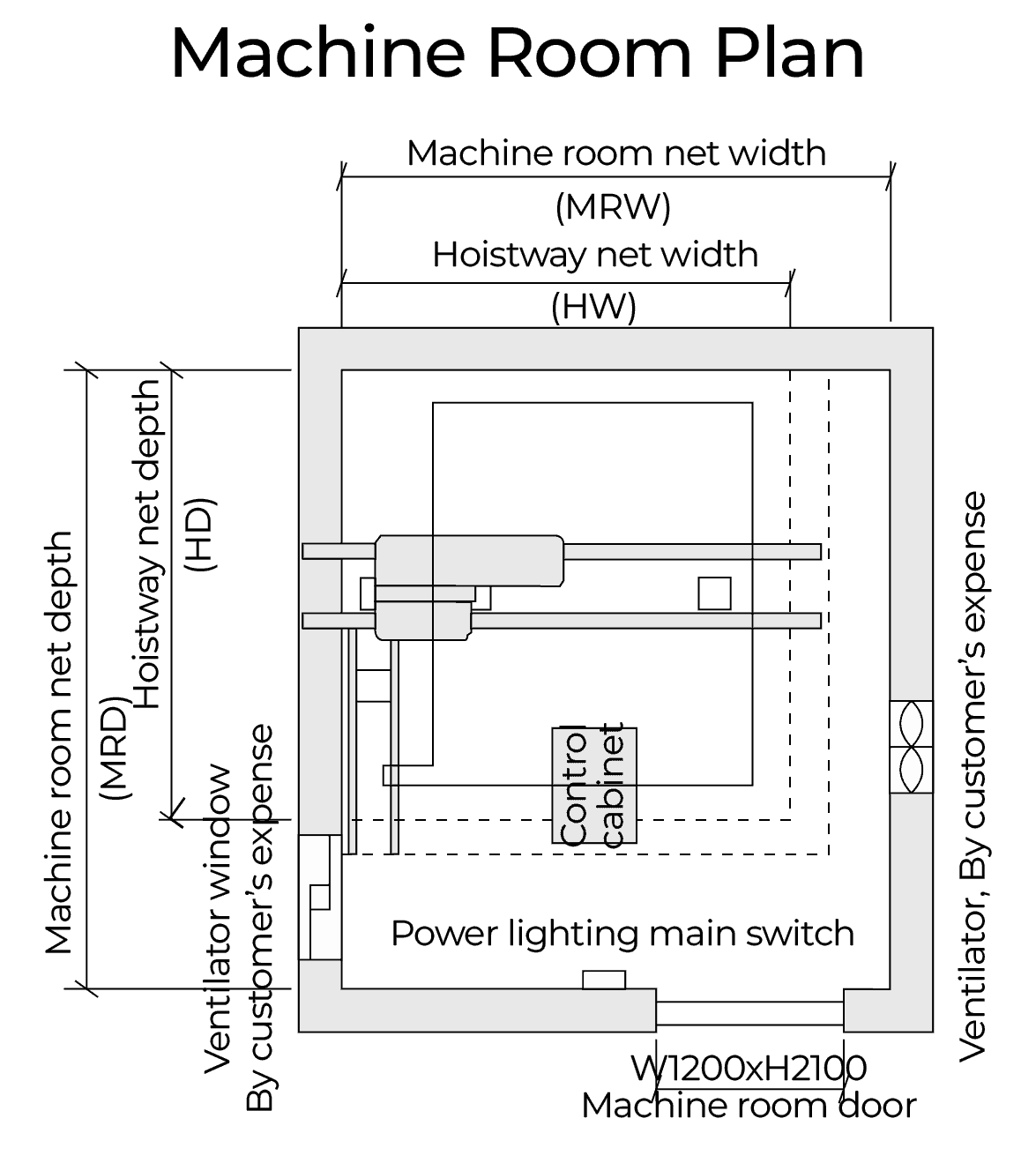

| Machine Room Size (W*D) : | 2200×2100 / 3400×4600 / 3800×5000 / 4000×5000 / 4000×5000 / 4000×6000 / 4500×6000 / 4500×6000 mm |

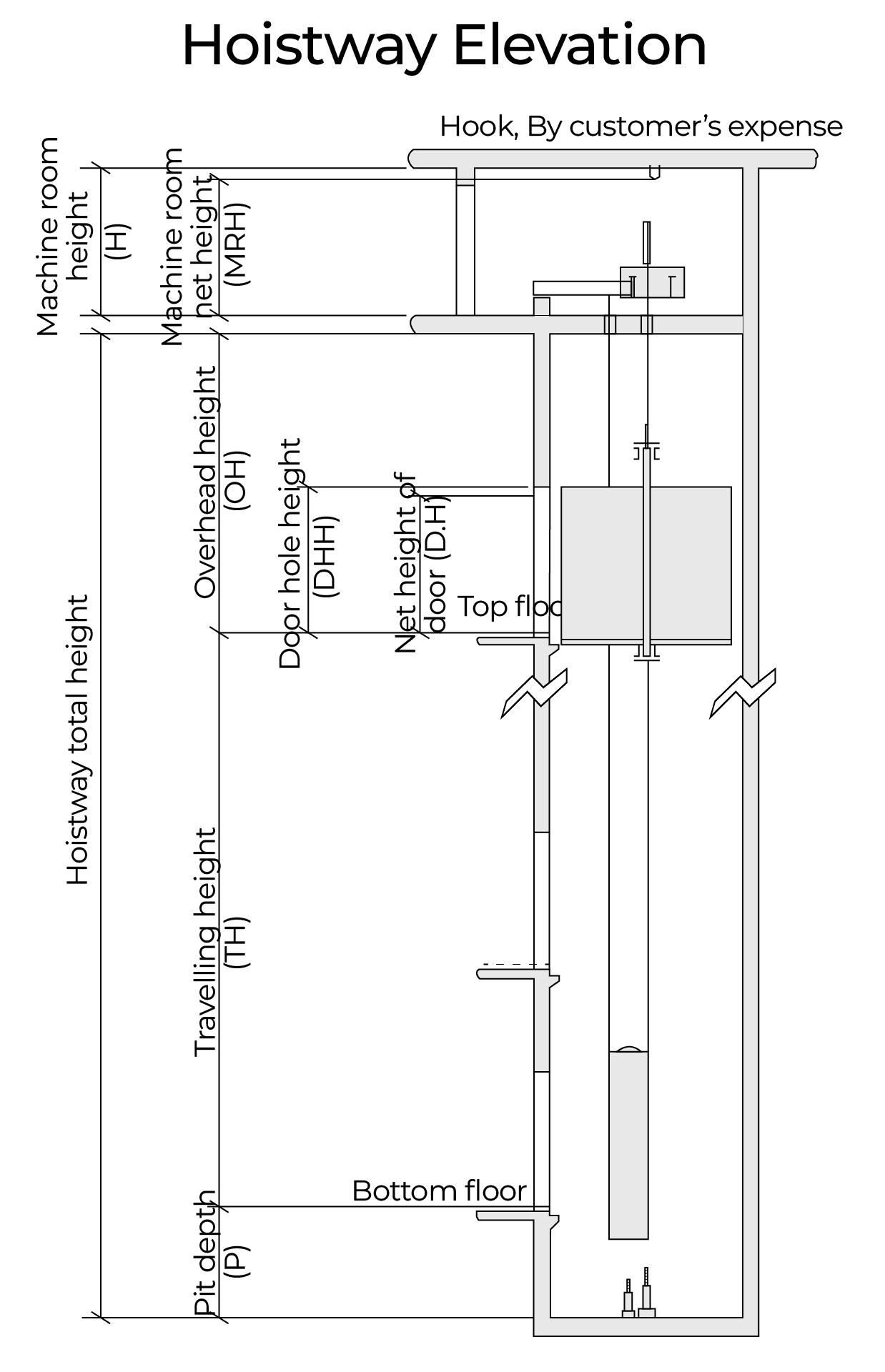

| Overload Height (OH) : | 4300 / 4500 / 4500 / 4600 / 4600 / 4600 / 4600 / 4800 / 4800 mm |
| Pit Depth : | 1600 / 1800 mm |
*Actual specifications may vary depending on project requirements and building conditions.
Large Capacity
Capable of safely and steadily transporting heavy loads with reliable performance.
Durable & Long-Lasting
Built with strong components for long-term, heavy-duty use in industrial environments.
Flexible Design
Customizable to meet your building layout and load capacity requirements efficiently.
Easy Maintenance
Simple maintenance supported by skilled technicians and readily available spare parts.
Download Product Brochure
Access the complete technical overview of Freight Lift systems, including load capacity specifications, heavy-duty configurations, industrial-grade performance features, and available design options for efficient goods transportation.
